10x Visium

[45]:

import warnings
warnings.filterwarnings("ignore")

[46]:

import pandas as pd
import numpy as np
import scanpy as sc
import matplotlib.pyplot as plt
from sklearn.metrics import *
from sklearn.metrics.cluster import adjusted_rand_score

[47]:

import BINARY

[48]:

import pysodb
sodb = pysodb.SODB()

[49]:

# Define names of the dataset_name and experiment_name
dataset_name = 'maynard2021trans'
experiment_name = '151673'
# Load a specific experiment
# It takes two arguments: the name of the dataset and the name of the experiment to load.
# Two arguments are available at https://gene.ai.tencent.com/SpatialOmics/.
adata_raw = sodb.load_experiment(dataset_name,experiment_name)

load experiment[151673] in dataset[maynard2021trans]

[50]:

adata = adata_raw.copy()

[51]:

adata

[51]:

AnnData object with n_obs × n_vars = 3639 × 33538
    obs: 'in_tissue', 'array_row', 'array_col', 'Region', 'leiden'
    var: 'gene_ids', 'feature_types', 'genome', 'highly_variable', 'means', 'dispersions', 'dispersions_norm'
    uns: 'hvg', 'leiden', 'leiden_colors', 'log1p', 'moranI', 'neighbors', 'pca', 'spatial', 'spatial_neighbors', 'umap'
    obsm: 'X_pca', 'X_umap', 'spatial'
    varm: 'PCs'
    obsp: 'connectivities', 'distances', 'spatial_connectivities', 'spatial_distances'

[52]:

adata.var_names_make_unique()

[53]:

adata = BINARY.Count2Binary(adata)

[54]:

sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=2000)

[55]:

BINARY.Construct_Spatial_Graph(adata, use_method='KNN', cutoff=6)
#BINARY.Construct_Spatial_Graph(adata, use_model='Radius', cutoff = 150)

------Constructing spatial graph...------
The graph contains 21834 edges, 3639 cells.
6.0000 neighbors per cell on average.

[56]:

adata = BINARY.train_BINARY(adata, pos_weight = 10, device= 'cuda:0')

Size of Input:  (3639, 2000)

100%|██████████| 1000/1000 [00:13<00:00, 72.66it/s]

[57]:

sc.pp.neighbors(adata, use_rep='BINARY')
sc.tl.umap(adata)

[58]:

adata = BINARY.mclust_R(adata, used_obsm='BINARY', num_cluster=7)

fitting ...
  |                                                                      |   0%  |======================================================================| 100%

[59]:

obs_df = adata.obs.dropna()
ARI = adjusted_rand_score(obs_df['mclust'], obs_df['Region'])
print('Adjusted rand index = %.2f' %ARI)

Adjusted rand index = 0.59

[60]:

NMI = normalized_mutual_info_score(obs_df['mclust'], obs_df['Region'])
print('NMI = %.2f' %NMI)

NMI = 0.71

[61]:

plt.rcParams["figure.figsize"] = (3, 3)
sc.pl.umap(adata, color=["mclust", "Region"], title=['BINARY (ARI=%.2f, NMI=%.2f)'%(ARI, NMI), "Region"])

../_images/Spatial_domains_identification_10x_Visium_17_0.png

[62]:

plt.rcParams["figure.figsize"] = (3, 3)

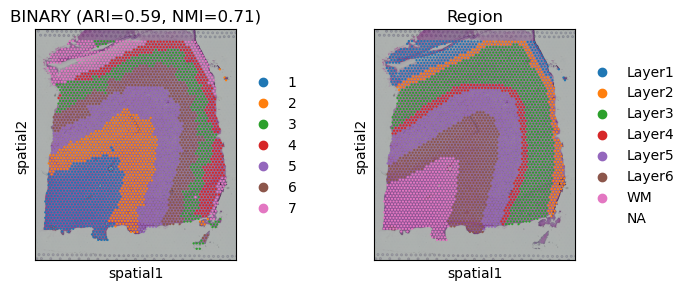

sc.pl.spatial(adata, color=["mclust", "Region"], title=['BINARY (ARI=%.2f, NMI=%.2f)'%(ARI, NMI), "Region"])

../_images/Spatial_domains_identification_10x_Visium_18_0.png

[63]:

new_type = BINARY.Refine_label(adata, radius=30, key='mclust')
adata.obs['domain'] = new_type

[64]:

obs_df = adata.obs.dropna()
refine_ARI = adjusted_rand_score(obs_df['domain'], obs_df['Region'])
print('Refine ARI = %.2f' %refine_ARI)

Refine ARI = 0.60

[65]:

from sklearn.metrics import *
refine_NMI = normalized_mutual_info_score(obs_df['domain'], obs_df['Region'])
print('NMI = %.2f' %refine_NMI)

NMI = 0.72

[66]:

plt.rcParams["figure.figsize"] = (3, 3)
sc.pl.spatial(adata, color=['domain', "Region"], title=['BINARY (refine_ARI=%.2f, refine_NMI=%.2f)'%(refine_ARI, refine_NMI), "Region"])

../_images/Spatial_domains_identification_10x_Visium_22_0.png
